CM1000-CD Dust Ex Proof Automatic Container Mixer
Introduction
The DEGOLD CM series container mixer is widely applied in various
powder and particle materials industries. With geometric shaped "Z"
blade, any desired mixing result can be dependably obtained. The
average mixing time is 3-6 min. Operator can add additional
materials into mixer by outlet valve.
The container mixer consists of a mobile container and the actual
mixer. Here, the container performs several functions from charging
to emptying, because it serves as a transport container before and
after mixing, as a mixing container during mixing, and as a storage
container for subsequent further processing.
CM series container mixers can be equipped with following functions
parts.
1. Dust proof,
2. Temperature measurement,
3. Injection hole,
4. Mixing head cooling,
5. Oxygen concentration measurement,
6. Dust Ex proof design.
Applications
Powder coating
Master batch (PE, PP, PA, PVC, PS, ABS, TPE, EPS...)
Dye concentrates
Additives (e.g. TiO2, CaCo3, Zn, MgO...)
Toner (premixtures and finished mixtures)
PVC (hard/soft) preparation (without cooling)
Metal compounds (MIM)
PTFE
Silicic acid with liquids
Brake linings
Leather fibers
Construction materials
Food
Cosmetics
Pencil and colored pencil leads
Advantages
Separated control cabinet
The special cleaning position
Geometric two mix blades
Many usage of container
PLC control
Ex motor
CM1000-CD (1000Litres)Technical Data
1) Total volume: 1000L,
2) Effective volume: 800L,
3) Mixing motor power: 55kW,
4) Dispersion motor power: 2-15kW,
5) Rotary motor power: 1.1kW,
6) Compressed air: 0.6MPa, 1/4" interport,
7) Working voltage: 380V/220V.
All Volumes Technical Data Sheet
| CM50 | CM150 CM150-D | CM300 CM300-D | CM600 CM600-D | CM1000 CM1000-D |
| Total volume: | 50L | 150L | 300L | 600L | 1000L |
| Effective volume: | 40L | 120L | 240L | 480L | 800L |
| Mixing motor power: | 4kW | 11kW | 11kW | 22kW | 30kW |
| Blades rotary speeds | 211r/min | 965r/min | 126/730r/min | 90/740r/min | 90/740r/min |
| Rotary motor power: | 0.37kW | 0.37kW | 0.75kW | 1.5kW | 2.2kW |
| Lifting motor power: | -- | -- | 2×0.55kW | 2×0.55kW | 2×0.55kW |
| Compressed air: | 0.6Mpa, 1/4" interface port |
| Working voltage | 380V 50Hz (it can be customized) |
| Controlling voltage: | 24V |
| Container outlet butterfly vavle diameter: | 100 | 150 | 200 | 250 | 250 |

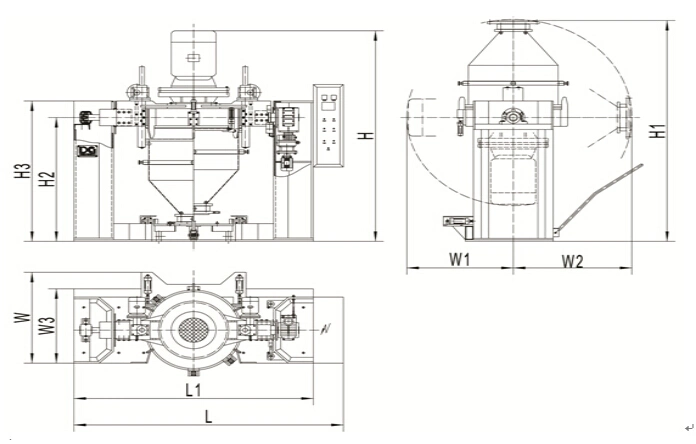

Dimension Length L L1 Width W W1 W2 W3 Height H H1 H2 H3 |
--mm --mm --mm --mm --mm --mm --mm --mm --mm --mm |
2000mm 1500mm 950mm 640mm 925mm 800mm 1800mm 2100mm 1175mm 1300mm |
2200mm 1900mm 1010mm 915mm 1015mm 900mm 2250mm 2355mm 1350mm 1550mm |
2700mm 2400mm 1100mm 1070mm 1200mm 900mm 2550mm 2675mm 1500mm 1700mm |
3290mm 2890mm 1550mm 1266mm 1573mm 1325mm 3056mm 3477mm 1900mm 2130mm |
