100Ltr Horizontal Sand Mill With Cooling Water Jacket And Customized Options

Ask Lasest Price
Supply Ability :	250sets/Year

Add to Cart

Product Details
Company Profile

100Ltr Horizontal Sand Mill With Cooling Water Jacket And Customized Options

100 Liters Horizontal Sand Mill with Cooling Water Jacket and Customized Options

Product Description

DEGOLD bead mills and sand mills are suitable for continuous wet grinding of solids in liquid materials to reduce particle size.

ZM100-E horizontal bead mill is 100 liters wet grinding machine for paints, inks, pigments and agrochemicals.
Because of different applications, there are different options materials inside the grinding chamber.

Principle of Operation: The rotary grinding shaft drives all grinding mediums inside the grinding chamber. The grinding mediums passes the powers to the materials to reduce the particle size. Gap separator inside the horizontal bead mills separates the products and the grinding mediums. They are suitable for different viscosities formulations.

Applications:

Technical Data:

ZM-E Series	ZM20-E	ZM50-E	ZM100-E	ZM200-E	ZM300-E	ZM500-E	ZM1000-E
Grinding chamber volume (l)	20	50	100	200	300	500	1000
Batch size (l)	100-500	200-1000	500-2500	1000-10000	>2000
Drive (kW)	18.5-22	37-45	55-75	75-90	90-110	160-200	315
Grinding shaft rotary speed (r/min)	1200	800	650	500	460	350	340
Length (mm)	1670	1970	2750	2950	3450	3350	6650
Width (mm)	1050	1150	1200	1200	1300	1500	1450
Height (mm)	1565	2000	2200	2200	2250	2700	2850
Net weight (kg)	750	1500	3500	3700	4700	8000	12000
Ex proof Type	Ex proof / Non Ex proof
Seal Type	Single Mechanical Seal / Double Mechanical Seal
Inner Grinding Cylinder Material	SS304 / Hard Steel / Mold Steel / Tungsten Carbide / Ceramic / PU
Grinding Disc Material	SS304 / Hard Steel / Mold Steel / Tungsten Carbide / Ceramic / PU
Pump Type	Diaphragm pump / Gear Pump / Screw pump
Mill Speed Adjustment Way	With inverter / Without inverter
Note: Technical data are different if there are some customized constructions. We'd like to send you the suitable model sand mills for your production, please feel free to contact with us.

Production Line:

Exhibition:

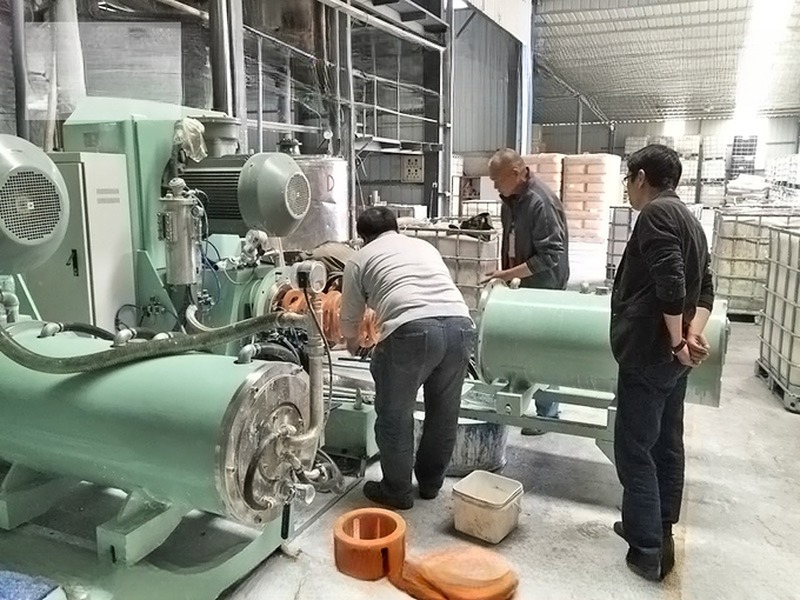

Degold 100L horizontal bead mills at buyer's site:

Degold's engineer go to customer's site to provide bead mills installation guide.
